Height and depth according to the user’s size

Posted on , by Bruno DUVAL

Table of the average dimensions of a custom-made seat based on stature

The following data correspond to an average measurement taken on a horizontal seat without a cushion (based on 358 people). All dimensions are in cm.
. Height is the height of the seat
. Depth is the depth of the seat
. Med’ back is a backrest that supports your back up to the shoulders (no head support)
. The high back is designed to support your head

SizeHeightDepthMed Back High back
14534,936,639,272,5
14635,336,939,673,0
14735,737,240,073,5
14836,237,440,474,0
14936,637,740.774.5
15037,038,041,175,0
15137,438,341.575,5
15237,838,641,976,0
15338,338,842,376,5
15438,739,142,777,0
15539,139,443,177,5
15639,539,743,578,0
15739,940,043,878,5
15840,440,244,279,0
15940.840,544,679,5
16041,240.845,080,0
16141,641,145,480.5
16242,041,445,881,0
16342,541,646,281,5
16442,941,946,682,0
16543,342,246,982.5
16643,742,547,383,0
16744,142,847,783,5
16844,643,048,184,0
16945,043,348.584,5
17045,443,648,985,0
17145,843,949,385,5
17246,244,249,786,0
17346,744,450,086,5
17447,144,750,487,0
17547,545,050,887,5
17647,945,351,288,0
17748,345,651,688.5
17848,845,852,089,0
17949,246,152,489,5
18049,646,452,890,0
18150,046,753,190.5
18250,447,053.591,0
18350,947,253,991,5
18451,347,554,392,0
18551,747,854,792,5
18652,148,155,193,0
18752.548,455,593,5
18853,048,655,994,0
18953,448,956,294,5
19053,849,256,695,0
19154,249,557,095,5
19254,649,857,496,0
19355,150,057,896.5
19455,550,358,297,0
19555,950,658,697,5
19656,350,959,098,0
19756,751,259,398,5
19857,251,459,799,0
19957,651,760,199,5
20058,052,060.5100,0
20158,452,360,9100,5
20258,852,661,3101,0
20359,352,861,7101,5
20459,753,162,1102,0
20560,153,462,4102,5
20660.553,762,8103,0
20760,954,063,2103,5
20861,454,263,6104,0
20961,854,564,0104,5
21062,254.864,4105,0
Seat sizes by size, 145 to 210 cm

Warning: these are averages.
Indeed, data collected on 358 people (TU Delft 2020) actually show significant differences from person to person.
For example for a person of 180 euros/- 1 cm one of the 358 individuals measured needs a seat of 45 cm in height, But another individual of the same size needs a seat of 53 cm in height.

The discrepancies are also significant in terms of the depth of the

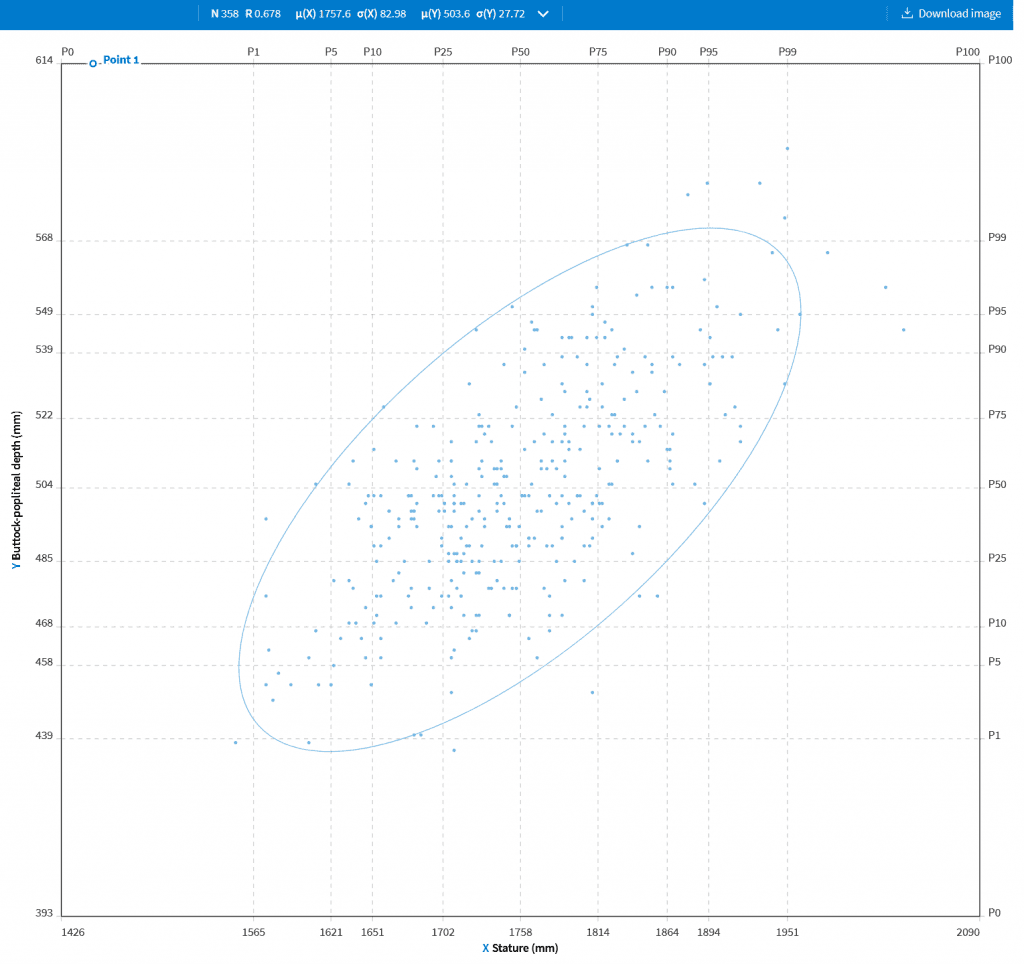

seatIn effect on this graph we have the size in abscisse and the seating slayer in order (sample of 358 people of the Delft TU). If the seat depth was proportional to the size the dots would draw a perfect straight: but the dot cloud draws an ellipse (for the statistics pros the correlation index is only 0.678).

Chart of the size in absciss and the seating slayer in order. Sample of 358 people from Delft TU.

How to measure the depth of a seat

Sit the person on a fairly deep horizontal surface and ask them to stand upright. Take a block (in blue on the drawing below) and lay it against the lower back.

1. Measure the distance between this block and the hollow at the back of the knee
.2. Remove about 4 cm to measure the seat depth of the chair.

Indeed it is important that the seat is not too long. Otherwise it comes in support against the hollow poplity and slows the venous return. Or the person slides forward more easily and adopts a bad posture for the back.

How to measure the depth of a seat
How to measure the depth of a seat

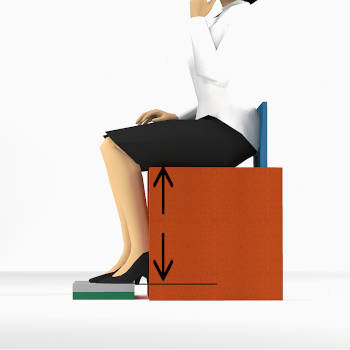

How to measure the height of a seat

Sit the person on a flat surface with their feet slightly in the air.

1. Shoe the person with slippers or shoes usually worn in the chair.
2. Add pounds or blocks under the feet until the front of the thigh is in contact with the flat surface. It is difficult to pass the hand between the thigh and the seat.
3. All that remains is to measure the distance from the underside of the heel to the seat

How to measure the height of a seat

Measuring the height of the backrest

The seated person measures the distance between the seat and the shoulder blades for a medium back or the distance between the seat and the back part of the skull for a headrest back.

How to measure an average record
How to measure the height of a folder with headrest
